Detail Description
Key attributes
Industry-specific attributes
Use
garden yard Light
Other attributes
Mounting Type
Ceiling Mounted
Description

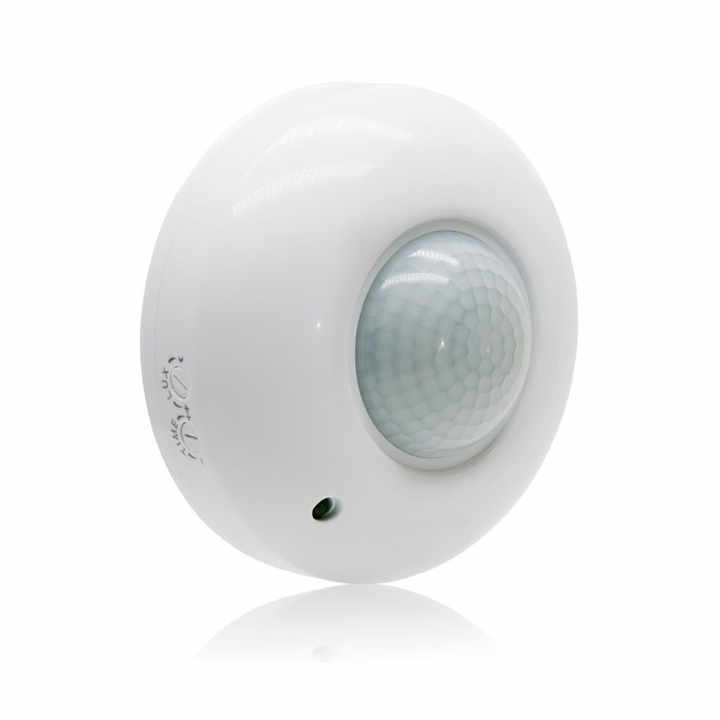

Motion Sensor Light Switch
Model Number
YCA1002A
Type
Motion & Position Sensor
Series
YCA1002A
Features
infrared motion sensor
Manufacturing Date Code
other
Place of Origin
Zhejiang, China
Brand Name
HANDSOME
Theory
infrared motion sensor
Output
other
Description
infrared motion sensor light Switch
Bandwidth
other
Interface
other
Sensing Range
diameter 2-12m (adjustable)
Power - Rated
1200W(220-240V/AC) 800W(110-130V/AC)
Voltage - Supply
110-130V/AC 220-240V/AC
Trigger Type
infrared motion sensor
Axis
other
Detection Distance
diameter 2-12m (adjustable) Height 1.5-3.5m
Terminals
other
PowerSource
110-130V/AC 220-240V/AC
Power Frequency
50 60Hz
Ambient Light
<5-2000Lux(adjustable)
Rated Load
1200W(220-240V/AC) 800W(110-130V/AC)
Detection Angle
360°
Time Delay
5sec-5min.(adjustable)
Detection Distance
8m
Work Temperature
-20~+40 ℃
Installation Height
1 5-3 5m
Application
Ceiling Mount
Packaging and delivery
Selling Units:
Single item
Single package size:
1.25X0.67X0.52 cm
Single gross weight:
0.220 kg
